Professional 30cm width DTF printer, equipped with 2 optional Epson printheads, supporting up to 9-color printing. Features Keditec’s exclusive technology for fluorescent spot color effects, stable continuous printing for over 1000 hours.
Keditec 30 DTF printer
Keditec 30 DTF Printer for Professional T-Shirt Transfer Printing with Vibrant Color Performance.
Configuration
- Product model ：K2 DTF-30
- Print head : Epson F1080-A1 / i1600-A1 / i3200-A1 / i3200 A1 – HD
- Number of print heads ：2
- Max print size : ≤ 330mm
- Ink colors : 5 Colors / 9 Colors (C,M,Y,K+W+FM,FY,FO,FG)
- Ink type : Keditec DT-201 / 202 ink
- Anti sedimentation system : White ink filtration & circulation system
Key features
- Beautiful and affordable price, ultra-high cost-effectiveness.
- Stable operation, Fast printing speed.
- The operation system is simple and easy to understand.
- Clear printing, No ghosting, Clear and delicate, Non ink drift.
- Clear after printing,Bright colors, High degree of reduction.
- Quality assurance, Trustworthy.
Rich colors
5 / 9
Maximum print width
330mm
Simple operation
keditec's technical can do it
Colors
Cyan
Magenta
Yellow
Black
White
Fluorescent Magenta
Fluorescent Yellow
Fluorescent Orange
Fluorescent Green

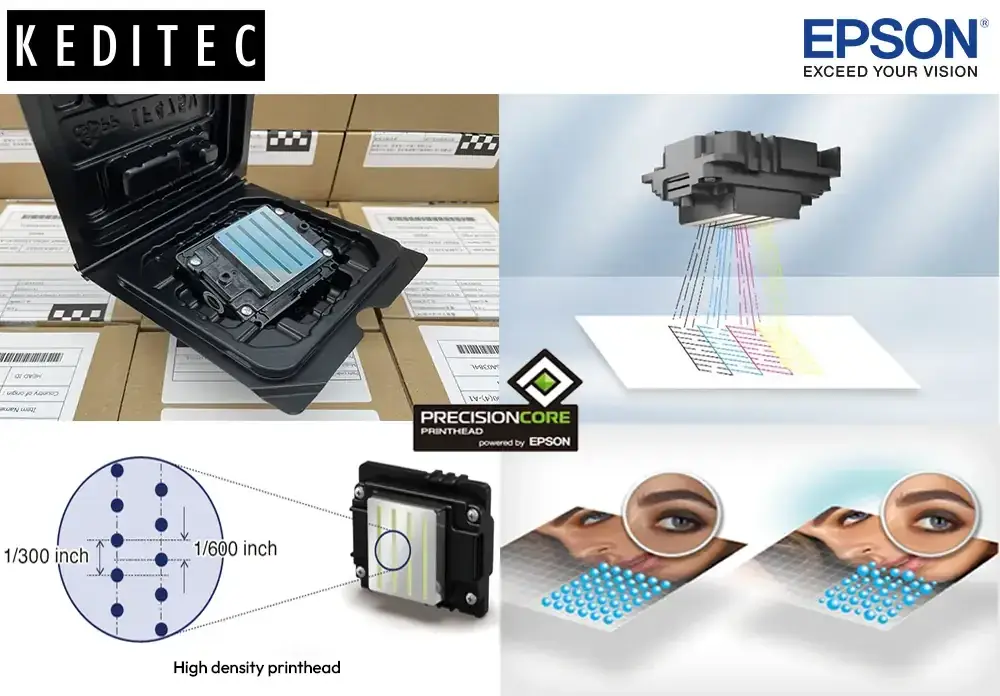

Print head
- Model：I3200-A1
- Ink Types：Water based ink
- Size(width x depth x height)(mm): 69.1×59.4×35.6
- Weight：82g
- Nozzle Numbers：3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 4 colors
- Nozzle Resolution：300npi/1row 600npi/2row
- Effective printing width (mm)：338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 6pl ( 43.2kHZ )
- 3 gray release: 6.3 , 12.3 pl 21.6kHZ
- 4 gray release: 3.8,6.1,9.4 pl ( 21.6kHZ )
- Viscosity range: 3~4 mPa･s
Simple operation
Specifications
Printer size
- Length : 1314mm
- Width : 622mm
- Height : 664mm
- Weight : 100kg
Print resolution / Speed / dpi
- 4 pass: 9m²/h (360×2400dpi)
- 6 pass: 7m²/h (360×3600dpi)
- 8 pass: 5m²/h(720×2400dpi)
Work environment
- Temperature: 20 – 30 ° C
- Humidity: 45 – 70%

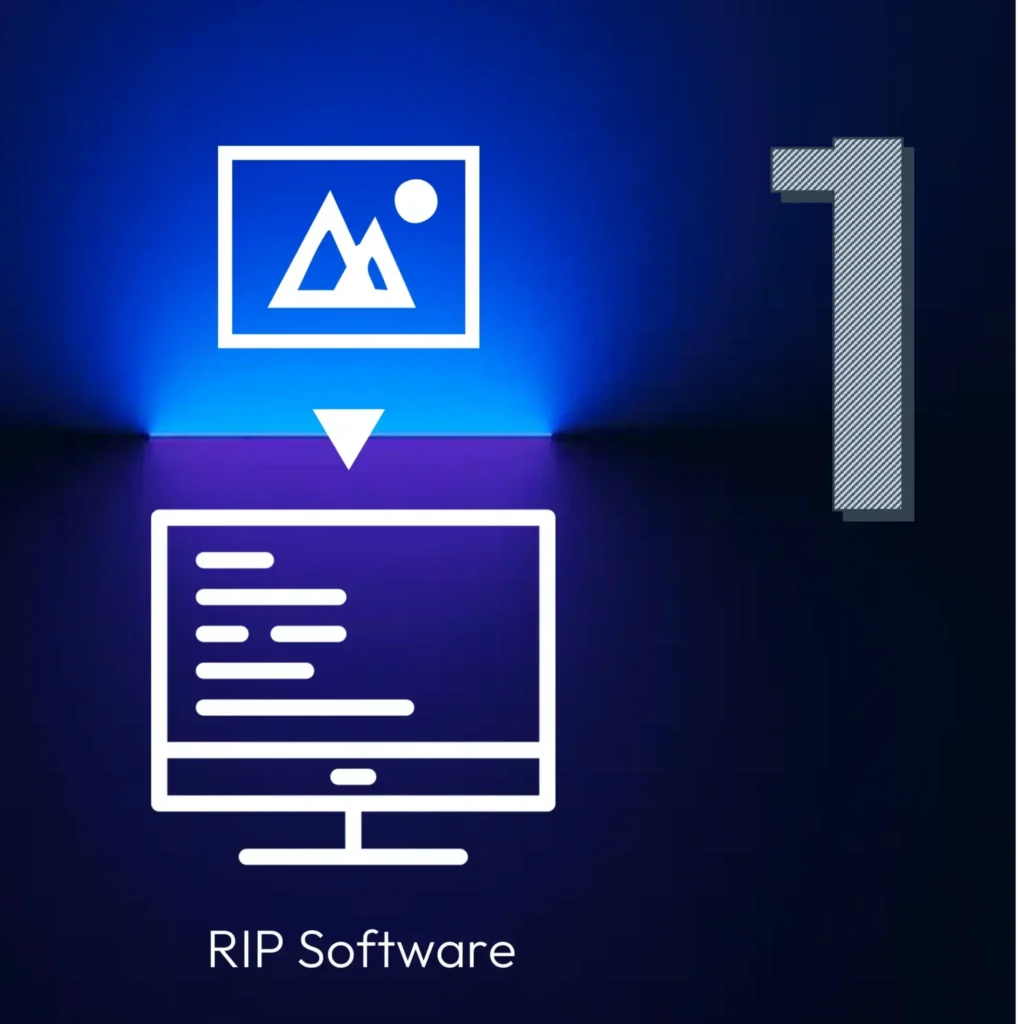

RIP software
- Maintop
- CADlink
- Flexi
- ONYX
- more…
Power
- 350W
Voltage
- AC 220V ±5%
- 16A
- 50/60 HZ
Details

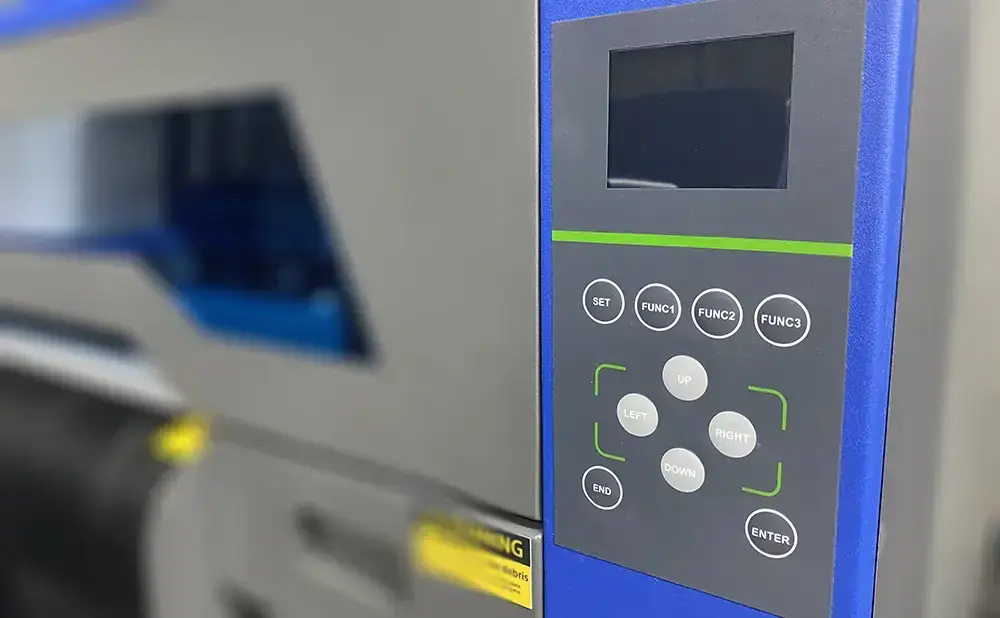

Convenient operation panel
The buttons are clear, the logic is simple, and it is easy to operate.

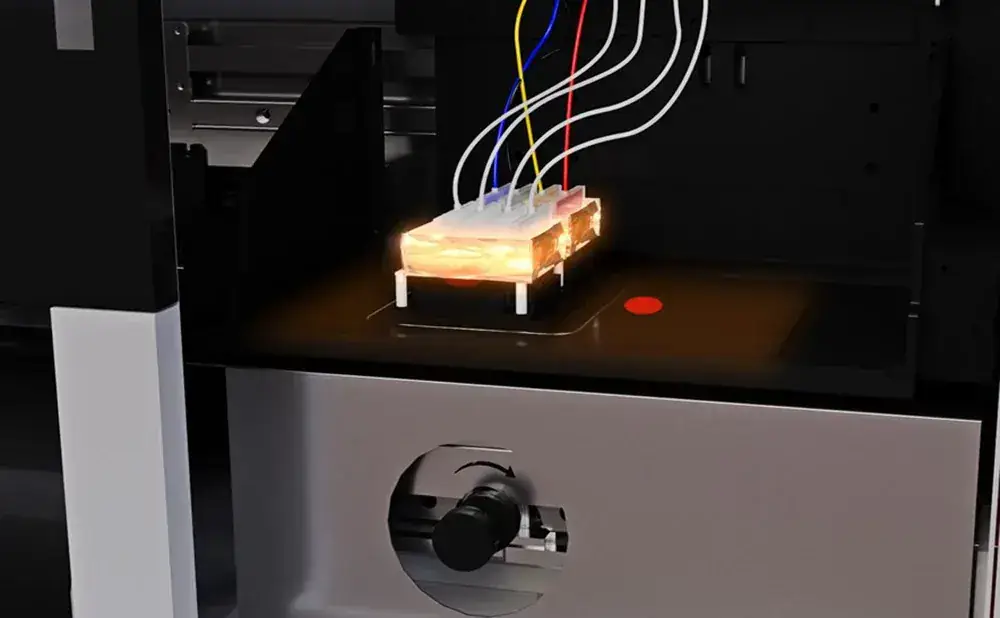

Provides print head heating function
Ink damper with an external heating device and a heat-releasing bracket plate. Thanks to this technology, the printer can operate normally in environments with high temperature fluctuations. The heating function ensures good ink fluidity during the printing process.

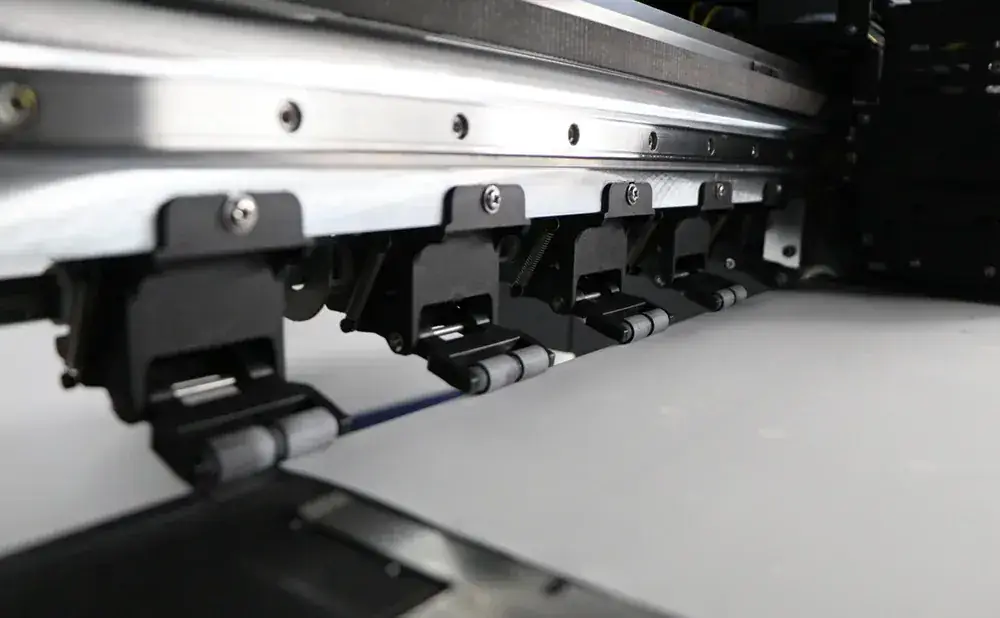

Advanced pass system
Motor-controlled paper travel and industrial-grade platen rollers enhance the stability and reliability of the printing process and prevent creases and other printing-related problems. Good printing accuracy is guaranteed during printing and output.

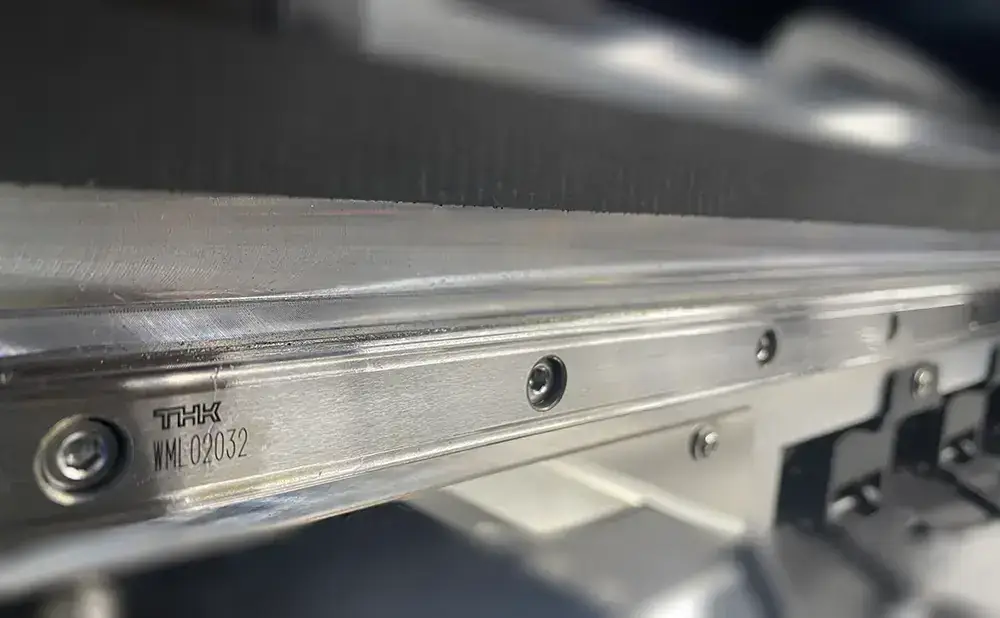

Silent linear guide
Quiet operation and good stability. Low noise, high speed, extended service life and long-term operation without maintenance are all achieved by significantly reducing friction between silent rail sliders and improving grease retention.

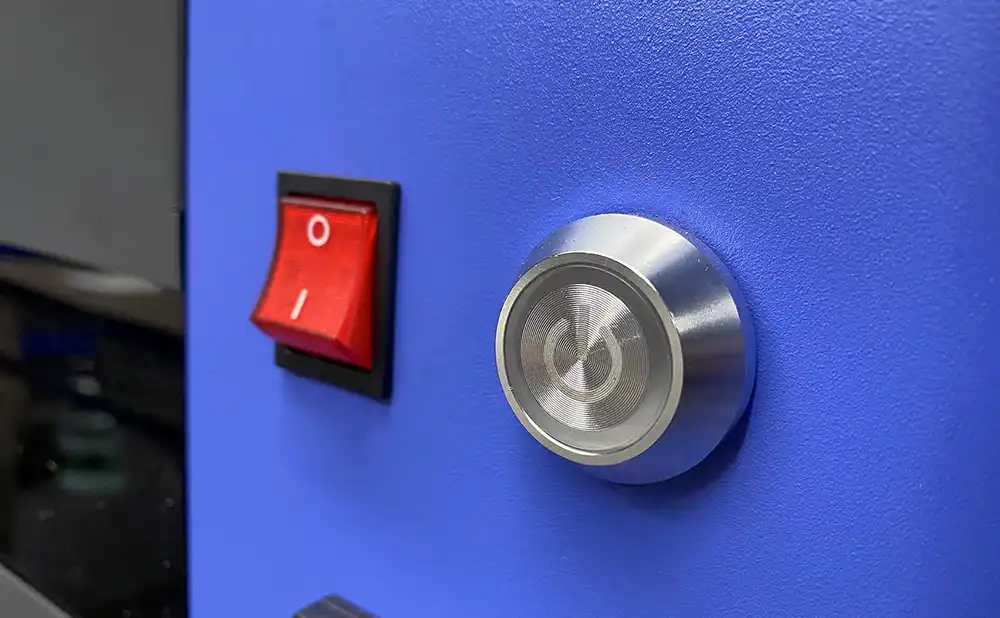

Metal reinforced start button
The button has built-in light, which is convenient for observing the switch status, starting and matching with the power switch.

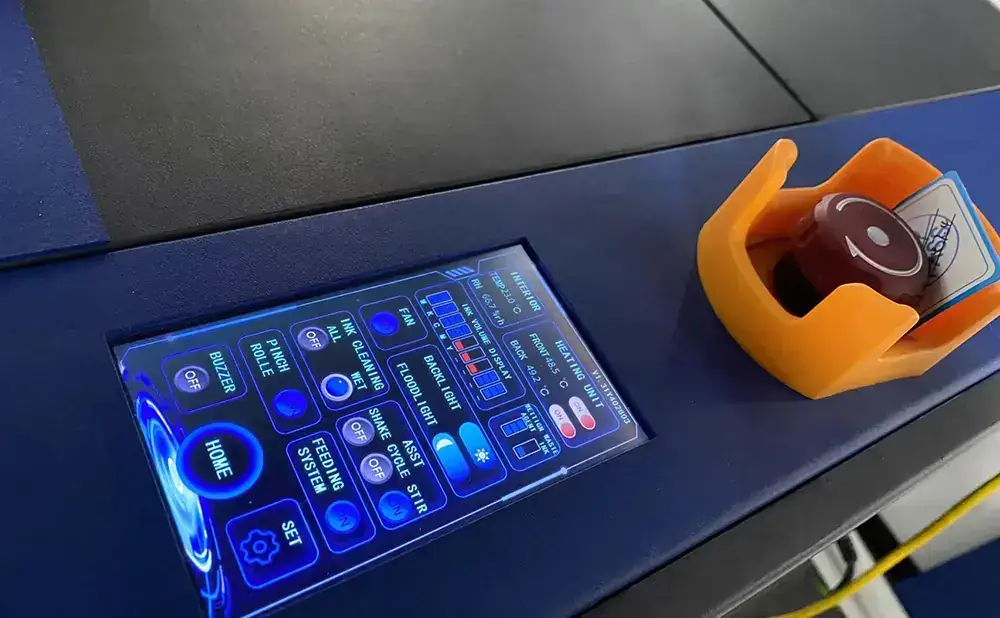

Equipped with an open touch display
Integrate multiple functions to develop custom-made front panels, making printing parameters and operations easier and more straightforward.

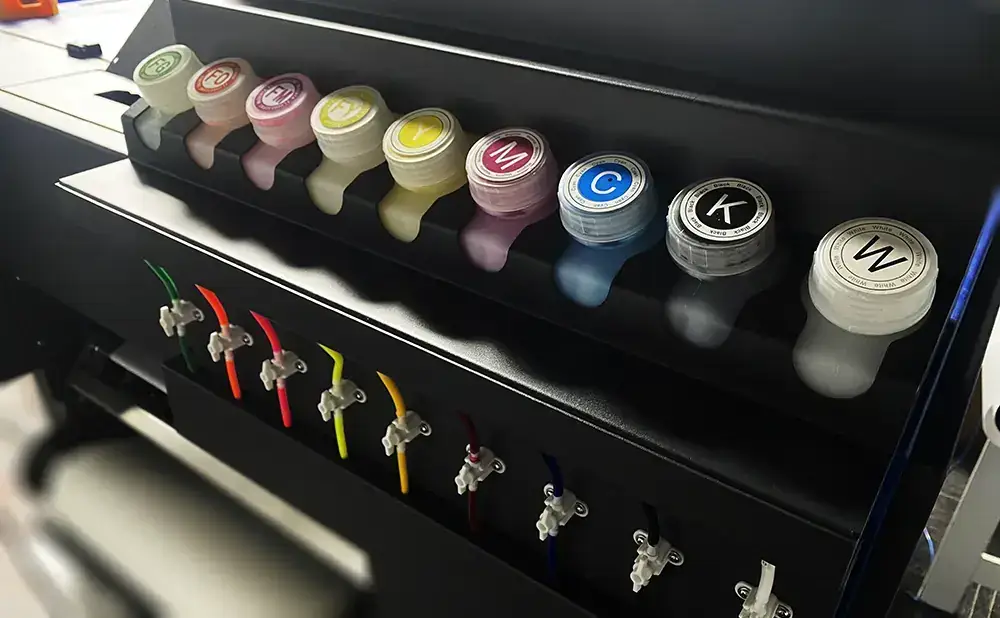

Equipped with large capacity ink cartridge
Uniform arrangement, fixed position, prevent dumping and color tubes are equipped with small switches for easy maintenance and upkeep.

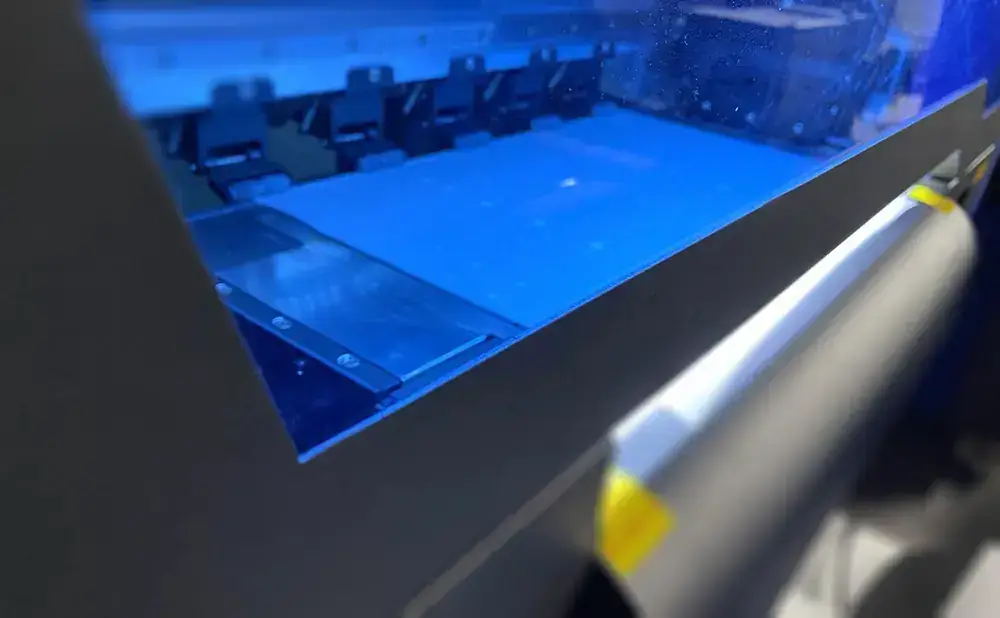

Built-in light and transparent observation window
The function of lighting is not only to enhance the appearance of the machine, but also to better detect problems in the printing process with window observation.

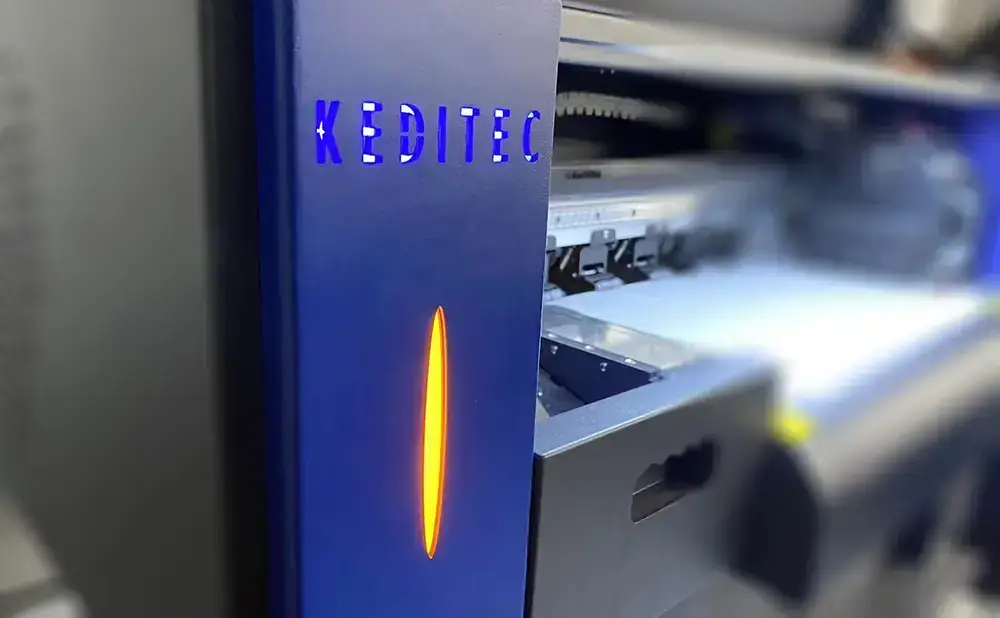

Bring your own luminous brand logo.
Make the beauty of machinery more visible, and also have the function of reminding the switch machine.

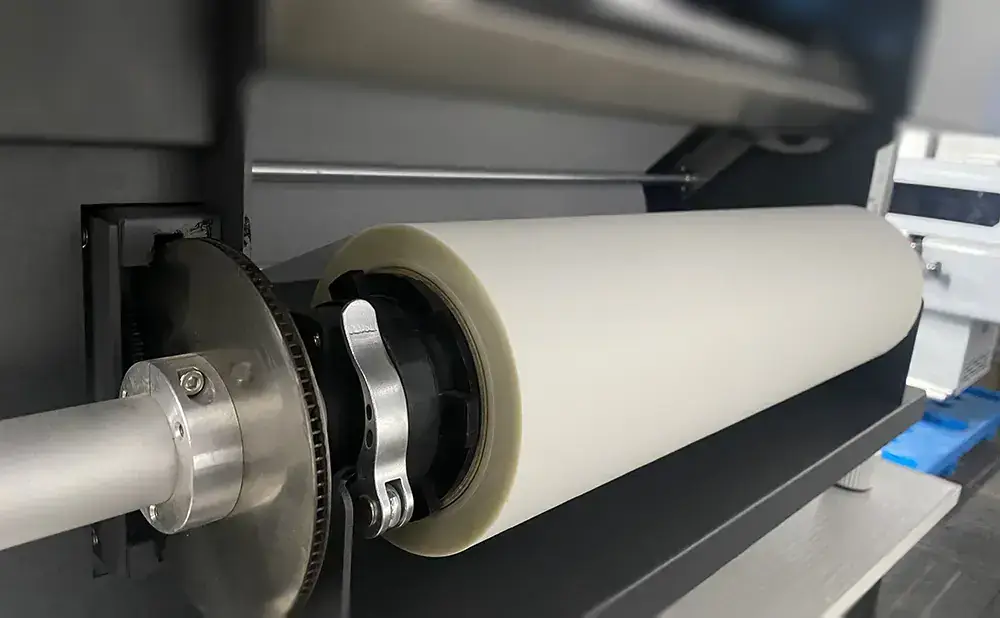

Excellent retractable system
Equipped with an automatic system for retracting and unloading materials, the printing accuracy is improved, and the quick-release design is also convenient for personnel to replace the film materials.
Use with powder shaker
Keditec 30 DTF powder shaker
Application
Learn more
FAQs
Who is Keditec Print?
Keditec Print is a professional printer manufacturer and supplier. It has been dedicated to the printer industry for many years. The company offers a wide variety of printer products, including digital printers, sublimation printers, UV printers, and more. Their products are widely used in industries such as advertising, home decoration, and textiles.
If I have any technical issues, how can you assist us in solving them?
Please send detailed instructions, photos or videos to our technicians, who will analyze the problem and provide an appropriate solution after receiving the information immediately.
What's the delivery time for your products?
Generally, the delivery is scheduled within about 5 to 15 working days after receiving the full payment or deposit.
How is your quality control?
We have a professional quality control team that performs 100% testing before delivery.
How can I get a fast and accurate quote?
Please select the product you are interested in on our official website’s product page and leave your email address, mobile phone number, company name and information about various product specifications.
How can I order a machine from you?
After you confirm the order details, we will send you a pro forma invoice for confirmation. Upon receiving the payment, we will arrange production. We will inform you of the shipping method, and the final product will be dispatched within the agreed time.
Can we become the exclusive distributor of your machine?
We look forward to working closely with you. After you have ordered multiple machines and can provide high-quality after-sales service, we can start discussing the distribution relationship.
What is the warranty for your machines?
Our machines come with a one-year warranty excluding the print head. During the warranty period, we will send some replacement parts free of charge. Damaged parts should be returned promptly.
