1.8m width industrial-grade heavy-duty dye sublimation printer, with reinforced structure and industrial-grade printhead array, supporting 24-hour continuous high-speed printing. Designed for industrial mass production of large-format home textiles and polyester fabric printing.
Industrial 1.8m sublimation printer
Keditec Industrial 1.8m Sublimation Printer for Professional Textile Printing and Continuous Production.
Configuration
-
Product model : K4-18 TX Max
-
Print head : EPSON i3200-A1
-
Number of print heads : 4
-
Max print size : ≤1800mm
-
Printing resolution :
-
Maximum 3600dpi
-
Ink colors : 4 Colors ( CMYK )
-
Ink type : Dye Sublimation Ink
-
Receiving system : AC servo motor + inverter
-
Ink supply method : Negative pressure ink supply system
-
Warranty : 12 months (Ink system, printheads and ink capping are not covered)
-
International Shipping : DHL,FedEx,By Air,By Sea
Key features
- Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant,reliable and precise.
- With KEDITEC series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage,apparel and interior decor items that will set your business apart from the competition.
- Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
Rich colors
4 colors
Maximum print width
1800mm
Simple operation
keditec's technical can do it
Colors
Cyan
Magenta
Yellow
Black
Light Cyan
Light Magenta
Light Black
Light Light black
Specifications
Printer size
- Length : 800mm
- Width : 3213mm
- Height : 1370mm
- Weight : 500kg
Standard components
- Ordinary collection and discharge system
- Automatic moisturizing and cleaning system
- External automatic control air heat dryer
- Ink level alarm system
Work environment
- Temperature: 15 – 32 ° C
- Humidity: 35% – 80%
Print resolution / Speed / dpi
- 4 pass: 80m²/h (720×1200dpi)
- 6 pass: 60m²/h (720×1800dpi)
RIP software
- Maintop
- Flexi
- Riin
Power / Voltage
- 2500W AC220V±10%
- 50/60 HZ
Accessories
- USB cable
- Media clamp
- Manual
- Drian bottle
- Ink cartridge
- RIP software
- Etc.
Print head
- Model：I3200-A1
- Ink Types：Water based ink
- Size(width x depth x height)(mm): 69.1×59.4×35.6
- Weight：82g
- Nozzle Numbers：3200
- Nozzle Row: 8 rows
- Nozzle pitch/nozzle row: 1/300 inch
- Max color/head: 4 colors
- Nozzle Resolution：300npi/1row 600npi/2row
- Effective printing width (mm)：338mm
- Droplet volume (pl) and ejection frequency (kHZ)
- 2 grey release: 6pl ( 43.2kHZ )
- 3 gray release: 6.3 , 12.3 pl 21.6kHZ
- 4 gray release: 3.8,6.1,9.4 pl ( 21.6kHZ )
- Viscosity range: 3~4 mPa･s
Details

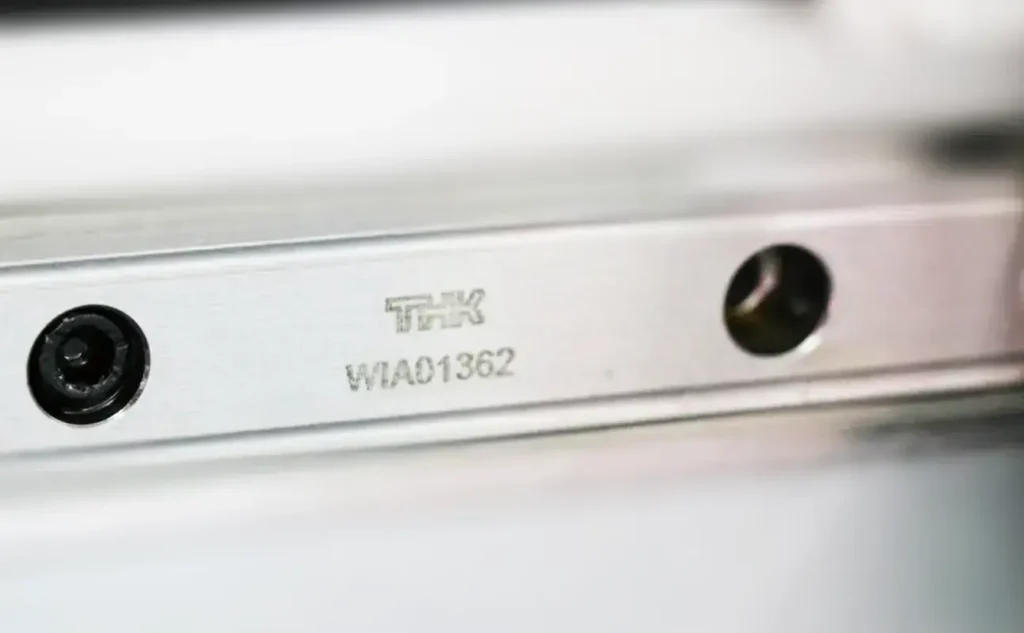

THK brand guide rail
The THK high-precision silent guide rail achieves extremely high precision with its exquisite manufacturing process. In various precision equipment and mechanical systems, it is able to ensure the accuracy and stability of the movement. Whether it is in small displacements or long-distance movements, it can maintain precise guidance, providing a solid guarantee for the efficient operation of the equipment.

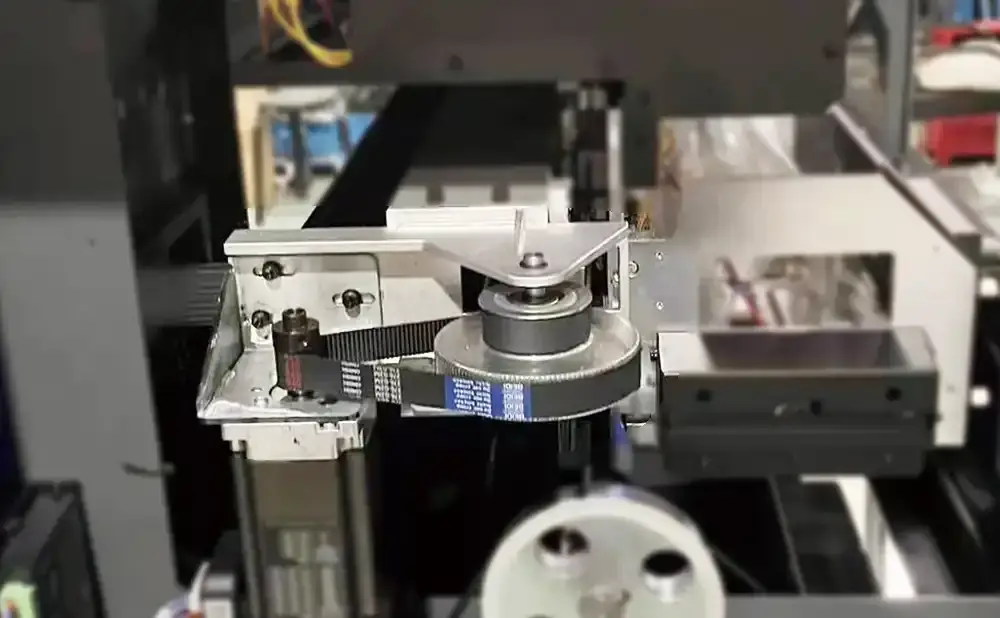

Tensioning pulley system
High-precision and high-stability tensioning pulley system.

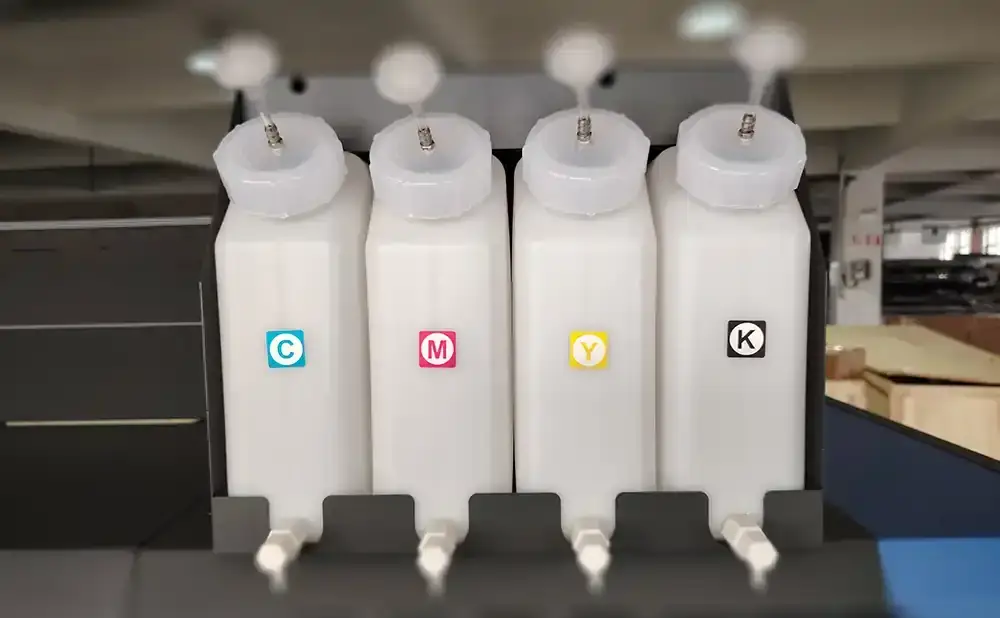

Ink cartridges
Stable bulk system ensures amazing printing speed.

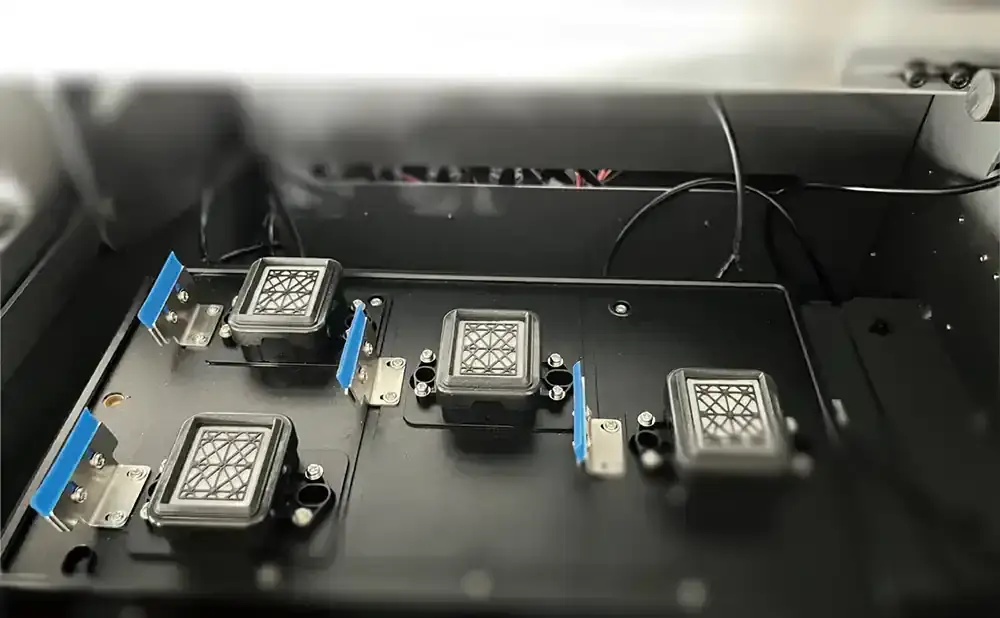

Moisturizing cleaning assembly
Automatic moisturizing cleaning
assembly ensures the stability of head cleaning and improves working stability.

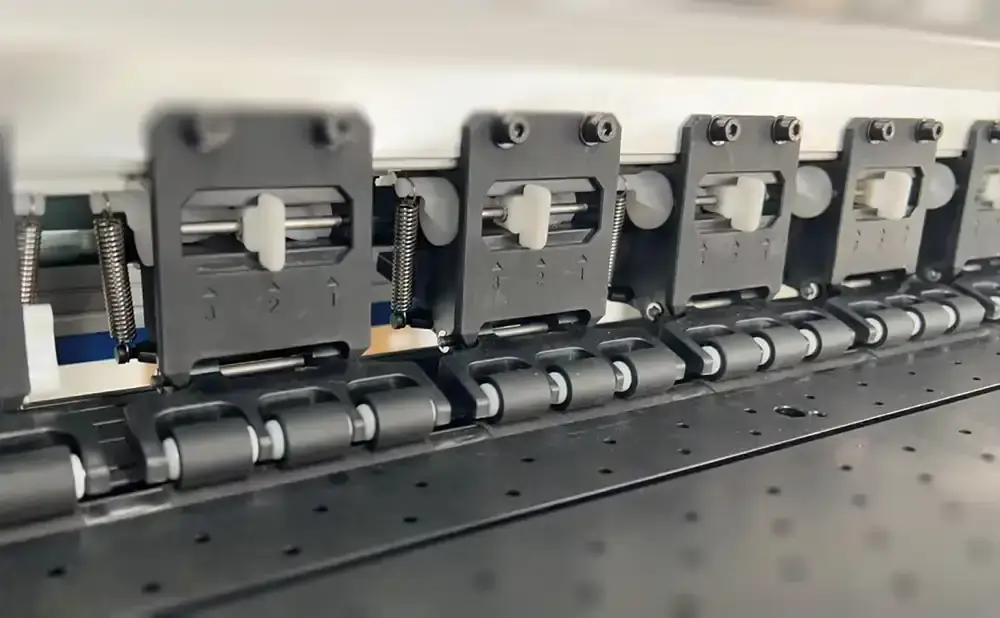

Pinch roller structure
New pinch roller structure of three in group brings more stable feeding precision.

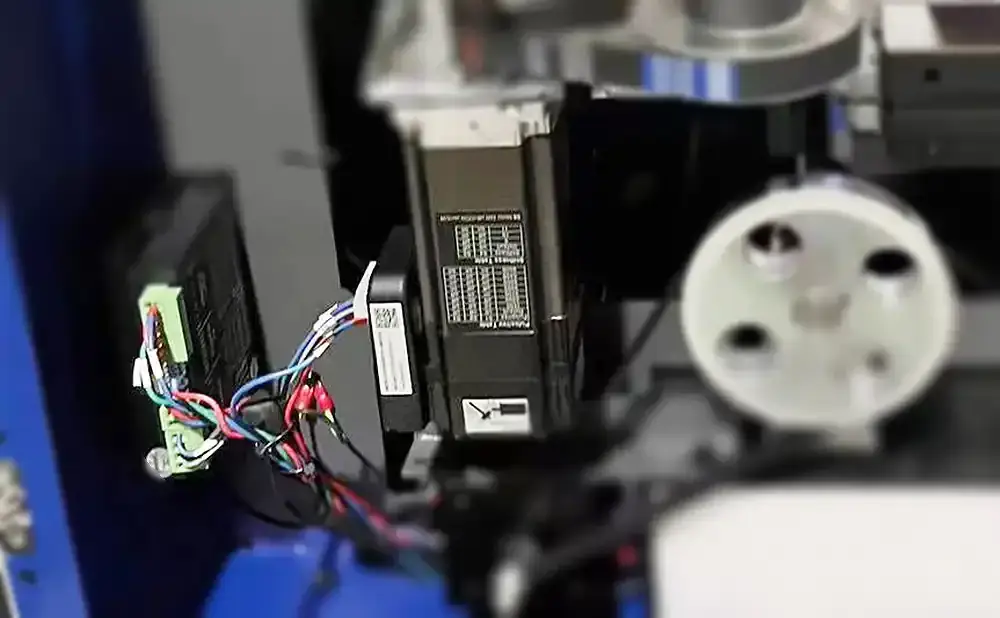

DC servo motor
High quality DC servo motor with good stability and long life.

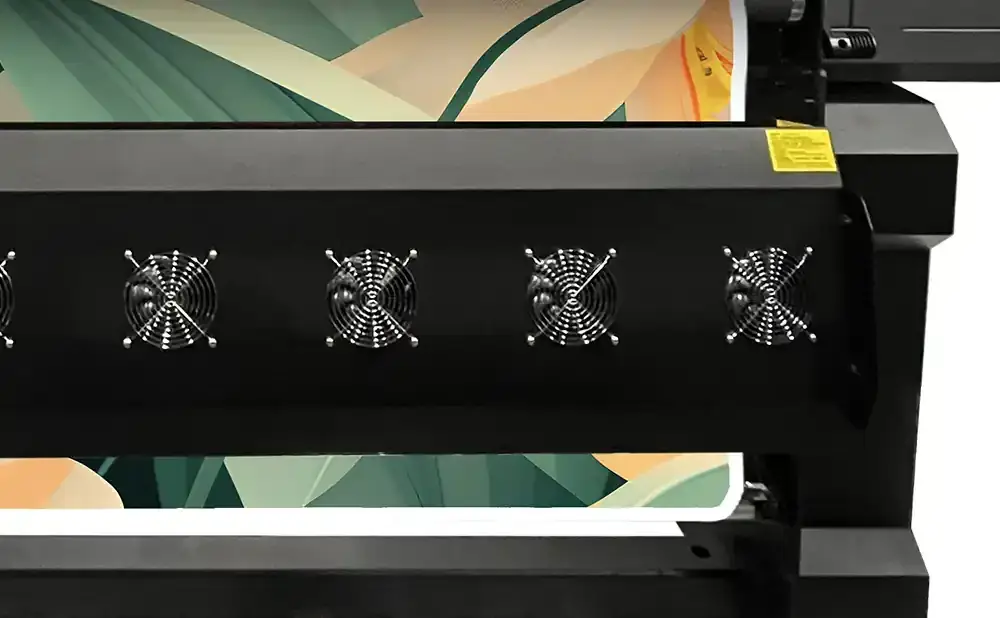

Drying system
Infrered heater and cooling fan.
Drying system
Infrered heater and cooling fan.
